GARDEN CART PARTS
|
HOMESTEAD & GARDEN WAY CARTS GENERALLY
USE 3/4" AXLE
(MEASURE THE DIAMETER,

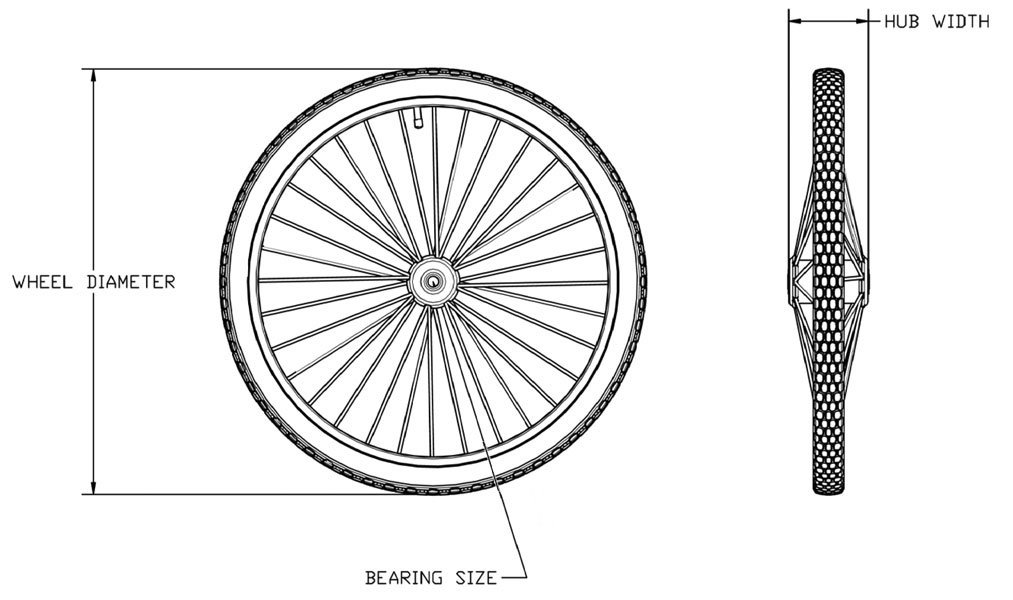

LENGTH AND WIDTH OF YOUR AXLE BEFORE ORDERING)
|
|
STYLE
|
MODEL #
|
OPTIONS
|
DESCRIPTION
|
PRICE
|
ORDER ONLINE
|
|
16 INCH STANDARD SPOKE WHEELS
|
|
|
20 SPOKE SEMI PNEUMATIC (HARD RUBBER, HOLLOW CORE) with 2-3/4 inch Wide Hub
|
|
HC2-16HR20
|
FOR
1/2", 5/8", 3/4"
Axles
16" x 1.75"
|
16" Pair Hard Rubber
Wheel Complete 20 spoke, 2 rims, 2 Hard Rubber Tires.
Load
Capacity 125 lbs each wheel 2-3/4" Wide Hub,
Semi-Pneumatic, Hollow Core |
$105.99
|
|
|
HC1-16HR20
|
16" Single Hard Rubber
Wheel Complete 20 spoke, 1 rim, 1 Hard Rubber Tire.
Load
Capacity 125 lbs each wheel 2-3/4" Wide Hub,
Semi-Pneumatic, Hollow Core
|
$52.99
|
|
|
20 INCH STANDARD SPOKE WHEELS
|
|
32 SPOKE PNEUMATIC (TIRE & TUBE) with 3-3/8 inch Wide Hub
|
|
HC2-20PN32
|
FOR
1/2", 5/8", 3/4"
Axles
20" x 2.125"
|
20"
Pair Tires & Tubes Wheel Complete 32 Spoke, 2 tires, 2 tubes and 2 rims.
Load
Capacity 150 lbs each wheel 3-3/8" Wide Hub. Pneumatic
|
$121.97
|
|
|
HC1-20PN32
|
20"
Single Tire & Tube Wheel Complete 32 Spoke,
1 tire, 1 tube and 1 rim.
Load
Capacity 150 lbs each wheel 3-3/8" Wide Hub. Pneumatic
|
$63.97
|
|
|
20 SPOKE SEMI PNEUMATIC (HARD RUBBER, HOLLOW CORE) with 3-3/8
inch Wide Hub
|
|
HC2-20HR20
|
FOR
1/2", 5/8", 3/4"
Axles
20" x 2.125"
|
20" Pair Hard Rubber,
Complete Wheel 20 spoke, 2 rims, 2 Hard Rubber Tires.
Load
Capacity 125 lbs each wheel 3-3/8" Wide Hub,
Semi-Pneumatic, Hollow Core |
$147.97
|
|
|
HC1-20HR20
|
20" Single Hard Rubber,
Complete Wheel 20 spoke, 1 rim, 1 Hard Rubber Tire.
Load
Capacity 125 lbs each wheel 3-3/8" Wide Hub,
Semi-Pneumatic, Hollow Core |
$73.99
|
|
|
32 SPOKE HARDY POLYURETHANE (SOLID HARD RUBBER) with 3-3/8 inch
Wide Hub
|
|
HC2-20SP32
|
FOR
1/2", 5/8", 3/4"
Axles
20" x 2.125"
|
20" Pair Polyurethane,
Complete Wheel 32 spoke, 2 rims, 2 Polyurethane Tires.
Load
Capacity 175 lbs each wheel 3-3/8" Wide Hub,
Solid
Polyurethane
|
$173.97
|
|
|
HC1-20SP32
|
20" Single Complete
Wheel 32 spoke, 1 rim, 1 Solid Polyurethane Tire.
Load
Capacity 175 lbs each wheel 3-3/8" Wide Hub
|
$89.99
|
|
|
20 INCH HEAVY DUTY 1/4" DIAMETER SPOKE WHEELS
|
|
1/4" DIAMETER, HEAVY DUTY 16 SPOKE PNEUMATIC (TIRE &
TUBE) with 3-3/8 inch Wide Hub
|
|
HC2-20PN16
|
FOR
1/2", 5/8", 3/4"
Axles
20" x 2.125"
|
20"
Pair Tires & Tubes, Complete Wheel 16 Heavy Duty Welded 1/4" Spokes. 2 tires, 2 tubes and 2 rims. Load Capacity 150 lbs each wheel 3-3/8"
Wide Hub. Pneumatic
|
$129.97
|
|
|
HC1-20PN16
|
20"
Single Tire & Tube, Complete Wheel 16 Heavy Duty Welded 1/4" Spokes.
1
tire, 1 tube and 1 rim. Load Capacity 150 lbs each wheel 3-3/8" Wide Hub.
Pneumatic
|
$67.97
|
|
|
1/4" DIAMETER, 16 SPOKE HARDY POLYURETHANE (SOLID HARD
RUBBER) with 3-3/8 inch Wide Hub
|
|
HC2-20SP16
|
FOR
1/2", 5/8", 3/4"
Axles
20" x 2.125"
|
20" Pair Polyurethane,
Complete Wheel Heavy Duty Welded 16 Spoke, 1/4" Diameter
2 rims, 2
Polyurethane Tires. Load
Capacity 250 lbs each wheel 3-3/8" Wide Hub
|
$179.97
|
|
|
HC1-20SP16
|
20" Pair Polyurethane,
Complete Wheel 16 Heavy Duty Welded 1/4" Spokes 1 rim, 1 Tire.
Load
Capacity 250 lbs each wheel 3-3/8" Wide Hub,
Solid
Polyurethane
|
$94.99
|
|
|
26 INCH STANDARD SPOKE WHEELS
|
|
32 SPOKE PNEUMATIC (TIRE & TUBE) with
4-7/16 inch Wide Hub
|
|
HC2-26PN32
|
FOR
1/2", 5/8", 3/4"
Axles
26" x 2.125"
|
26" Pair Tires & Tubes,
Complete Wheel 32 Spoke, 2 tires, 2 tubes and 2 rims.
Load Capacity 200 lbs
each wheel 4-7/16" Hub. Pneumatic |
$159.99
|
|
|
HC1-26PN32
|
26" Single Tire & Tubes, Complete Wheel 32 Spoke,
1 tire, 1 tube and 1 rim.
Load Capacity 200 lbs each wheel 4-7/16"
Hub. Pneumatic |
$79.99
|
|
|
32 SPOKE HARDY POLYURETHANE (HARD RUBBER) with 4-7/16 inch Wide
Hub
|
|
HC2-26SP32
|
FOR
1/2", 5/8", 3/4"
Axles
26" x 2.125"
|
26" Pair Polyurethane,
Complete Wheel 32 spoke, 2 rims, 2 Polyurethane Tires.
Load
Capacity 225 lbs each wheel 4-7/16" Wide Hub,
Solid
Polyurethane
|
$241.97
|
|
|
HC1-26SP32
|
26" Single Polyurethane,
Complete Wheel 32 spoke, 1 rim, 1 Polyurethane Tire.
Load
Capacity 225 lbs each wheel 4-7/16" Wide Hub,
Solid
Polyurethane
|
$120.99
|
|
|
|
|
20 AND 26 INCH
TIRE/TUBE
|
|
HC-TIRE-20
|
|
20" Tire (20 x
2.125)
|
$19.97
|
|
|
HC-TUBE-20
|
|
20" Tube(20 x
2.125)
|
$12.99
|
|
|
HC-RS-20
|
|
20" Rim Strip
|
$1.79
|
|
|
HC-TIRE-26
|
|
26" Tire (26 x
2.125)
|
$29.97
|
|
|
HC-TUBE-26
|
|
26" Tube (26 x
2.125)
|
$14.99
|
|
|
HC-RS-26
|
|
26" Rim Strip
|
$1.99
|
|
|
SPECIAL ORDER AXLES - CUSTOM
OR READY MADE! |
|
HC-AX-40S
40 inches or shorter
|
1/2" Diameter
|
SPECIAL ORDER AXLES
Specify the exact axle length and Diameter you need!
40 inches or shorter
write
dimensions at checkout in the comment section
|
$49.99
|
|
|
5/8" Diameter
|
|
3/4" Diameter
|
|
|
HC-AX-40L
40 inches or longer
|
1/2" Diameter
|
SPECIAL ORDER AXLES
Specify the exact axle length and Diameter you need!
40 inches or longer
write
dimensions at checkout in the comment section
|
$57.97
|
|
|
5/8" Diameter
|
|
3/4" Diameter
|
|
|
HC-AX-26-A
for
Big or Classic Cart with 4-7/16"
Wide Hub Wheels
41.5" Long
|
1/2" Diameter
|
SPECIAL ORDER AXLES
for
Big or Classic Cart w/4-7/16" Wide Hub Wheels
41.5" Long
|
$57.97
|
|
|
5/8" Diameter
|
|
3/4" Diameter
|
|
|
HC-AX-26-B
for
Big or Classic Cart with 3-3/8"
Wide Hub Wheels
39-3/8" Long
|
1/2" Diameter
|
SPECIAL ORDER AXLES
for
Big or Classic Cart w/3-3/8" Wide Hub Wheels
39-3/8" Long
|
$57.97
|
|
|
5/8" Diameter
|
|
3/4" Diameter
|
|
|
HC-AX-20
for
All Junior Carts
with 3-3/8"
Wide Hub Wheels
28-1/2 Long |
3/4" Diameter |
SPECIAL ORDER AXLES
for
All Junior Carts with 3-3/8" Wide Hub Wheels
|
$49.99
|
|
|
|
HC-AX-20-FB
for
Junior Full Bed Carts w/26"
Wheels
and 4.5" Hub Width
31" Long |
3/4" Diameter |
SPECIAL ORDER AXLES
for
Junior Full Bed Carts w/26"
Wheels and 4.5" Hub Width |
$49.99 |
|
|
CART WHEEL BEARINGS
|
|
HC-SB-STD
|
For 1/2" Axle
|
Straight Ball Bearings for heavy duty cart wheels(for
seating into 1-3/8" hole)
(select options after "ADD TO CART")
|
$8.79
(each)
|
|
|
For 5/8" Axle
|
|
For 3/4" Axle
|
|
CART WHEEEL WASHERS
|
|
HC-1/2-W
|
For 1/2" Axle
1-14" OD x 1/2" ID
3/32" Thick
|
Washersfor heavy duty cart
axles
|
$.79
(each)
|
|
|
HC-5/8-W
|
For 5/8" Axle
1-11/16"OD x 5/8"ID
3/32" Thick
|
$.89
(each)
|
|
|
HC-3/4-W
|
For 3/4" Axle
1-15/16ODx3/4"ID
1/8" Thick
|
$.99
(each)
|
|
|
CART WHEELL COTTOR PINS
|
|
HC-1/8-CP
|
For Axles
w/1/8" Hole
|
1/8
in. x 1 in. Cotter Pins (2-Pieces)
|
$.99
|
|
CART PARTS INFORMATION
wheel assemblies
that are pneumatic are tire & tube tires and tubes will not fit on rims that
previously had solid rubber tires,
They cannot be refitted to old solid tire
rims.
NOTE: shipping charge is
calculated and added at check out
|
